GeoGab Infrastructure is a Gujarat-based manufacturer and contractor based in Surat, delivering cutting-edge technology in earth stability — soil erosion control, bank protection, slope protection and ground improvement. Formed as a partnership firm in 2001, we have manufactured and installed earth retaining structures ever since.

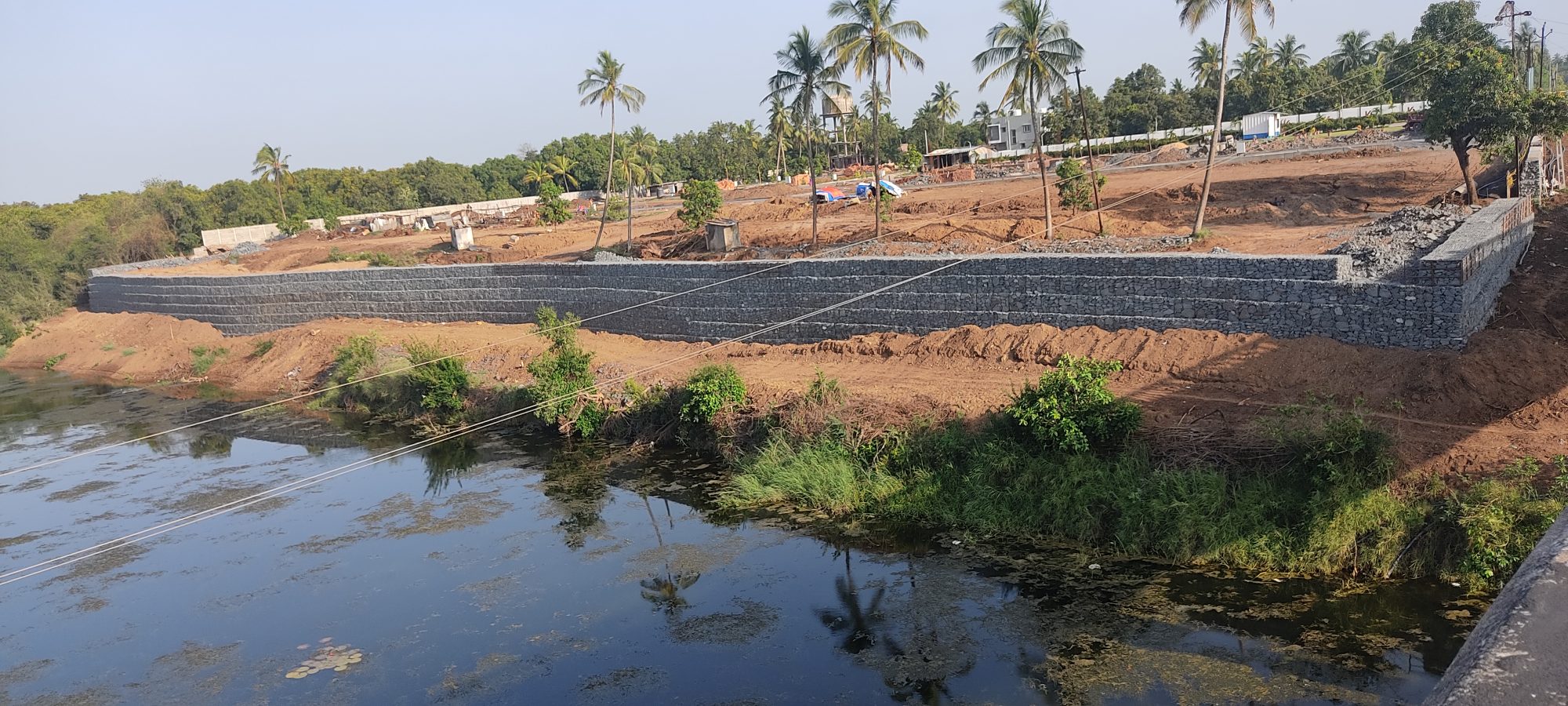

PH-01RIVER BANK PROTECTIONLANDSCAPE — 1600 × 1067 pxGeoGab Infrastructure is a Gujarat-based company situated in Surat, one of India's fastest-growing cities. Formed as a partnership firm in 2001, we manufacture and install earth-retaining structures and deliver cutting-edge technology in the fields of earth stability, soil-erosion control, bank protection, slope protection and ground improvement.
We are manufacturers, not merely suppliers. Our Geocon Mattress articulated concrete block revetment system is developed in-house, alongside double-twisted hexagonal mesh gabions, geoblocks, crib walls, tetrapods and GCF. This lets us control quality, honour delivery schedules and tailor every system to the site.

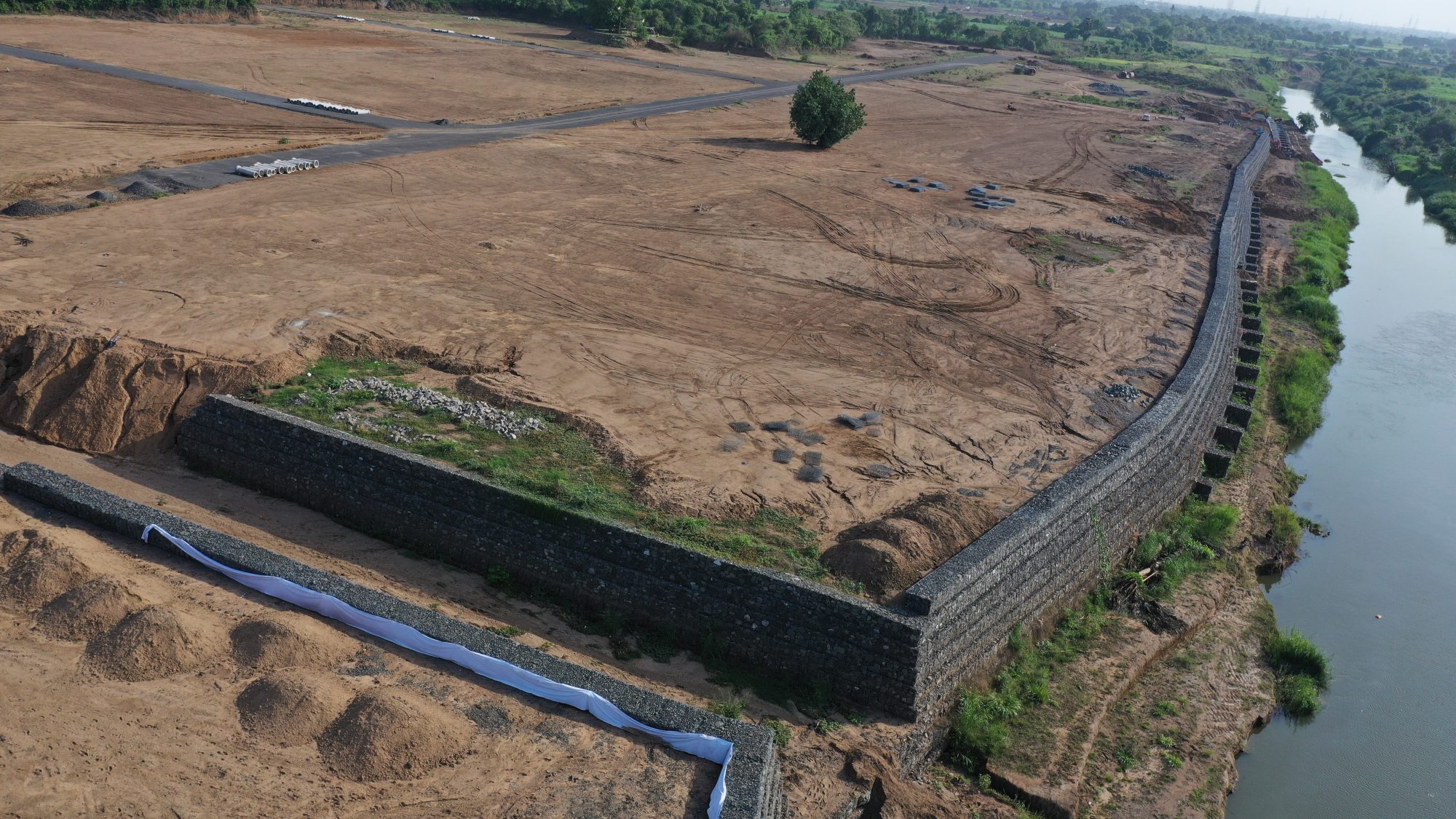

Our gabions are manufactured to IS 16014 : 2012 — mechanically woven, double-twisted hexagonal wire mesh in galvanized or Zn+PVC-coated wire. Every batch is checked for wire gauge, coating and mesh integrity before it leaves the works.
Manufactured and installed in-house since 2001 — from double-twisted mesh gabions to our own Geocon Mattress revetment system.
From the Italian gabbione, meaning cage. A cage, cylinder or box filled with rock, concrete or soil for road building, retaining wall structures, military applications and landscaping. Mechanically woven, double-twisted hexagonal wire mesh gabions, revet mattresses and rock-fall netting.
Interlocking concrete retaining wall blocks that resist lateral soil pressure where the change in ground elevation exceeds the angle of repose. Up to 10× faster than traditional walls — no formwork, shuttering or mortar, in any weather.
One of the oldest gravity wall systems — a series of stacked precast concrete members creating hollow cells filled with soil or rock.
An articulated concrete block revetment system developed by GeoGab Infrastructure. Concrete blocks interlocked by polypropylene or stainless-steel rope threaded through each block in both directions, with spacing left open for vegetation or granular backfill. Controls erosion from water, wind or vehicular traffic.
Coastal structures preventing erosion from weather and longshore drift. The tetrahedral form dissipates incoming wave force by letting water flow around rather than against it, and interlocks to reduce displacement — reinforcing seawalls and breakwaters.
Flexible dry concrete held in layers of fabric that hardens on hydration into a thin, durable, waterproof concrete layer — concrete in fabric. No plant or mixing equipment: spread the roll, top up with water, ready in 10 hours.
Mattress widths and lengths, block geometry and wire specification are all made to suit site conditions. Irregular mattress sizes can be designed where needed.
REQUEST A QUOTATIONGalvanized steel wire, or galvanized steel wire with PVC coating. Supplied as gabion baskets, revet mattresses and rock-fall netting for retaining structures, river training and slope protection.
Developed by GeoGab Infrastructure. Concrete blocks interlocked by polypropylene or stainless-steel rope poured through each block in both directions, with spacing between blocks left open for vegetation or granular backfill.
A flexible, dry concrete held in layers of fabric that hardens on hydration to form a thin, durable, waterproof concrete layer. Allows concrete construction without plant or mixing equipment — spread the roll, top up with water, ready after 10 hours.
Designed and constructed to resist the lateral pressure of soil where a desired change in ground elevation exceeds the soil's angle of repose. Blocks can be lifted and rebuilt at another location if plans change.
Retention and erosion-control systems applied across river training, coastal protection, rock fall and highway embankments.
NO PROJECTS IN THIS CATEGORY.
Seventeen application areas across infrastructure, water and coastal engineering — supplied, fabricated and installed by GeoGab Infrastructure.
Systems selected and detailed for the actual hydraulic and soil conditions on site.
Pre-attached filter cloth ensures consistent placement, with quick and efficient delivery.
Open-cell geometry maximises regrowth, letting hard protection green over in time.
